MAIN FEATURES

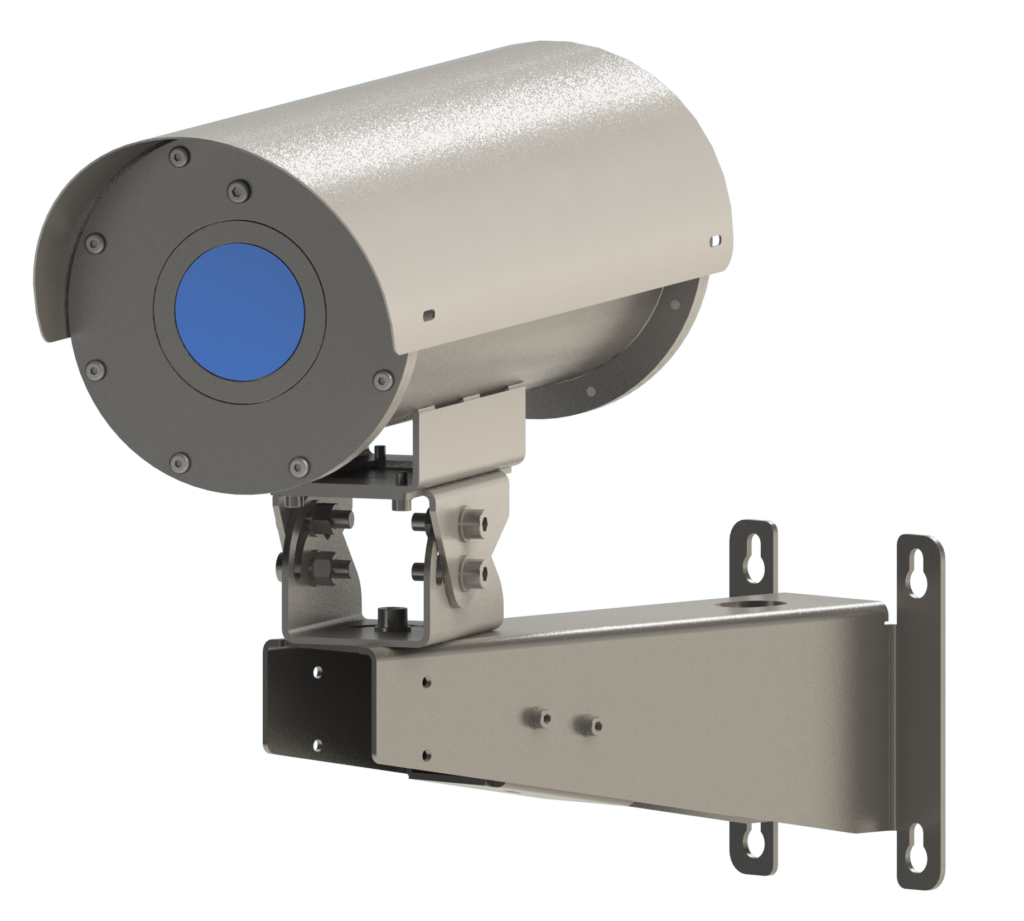

  • The CHK housing is a product specifically developed to work in harsh enviroments such as offshore/onshore marine applications and industrial.
  • It is made entirely of AISI316L stainless steel in order to assure the best resistance to the corrosion.
  • It requires a low level of maintenance and it comes IP66.
  • Very flexible with a lot of features.
  • It can be customized to fit specific requirements.

DESCRIPTION

This model is developed to manage:

  • single Day/Night camera (SD/HD block module or IP camera).
  • radiometric thermal camera.
  • surveillance thermal camera with or without motorized lens up to 100mm.

We can provide a very high level of customization at the following levels

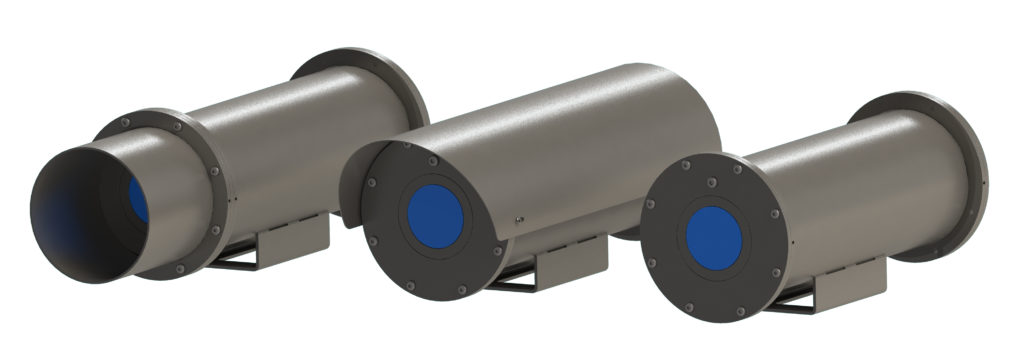

  • housing dimensions: length, diameter for day/night and thermal cameras.
  • external accessories to protect the housing or front as sunshield or special accessories for typical tunnel applications.
  • fixing and anchoring systems.
  • prearrangement of the camera fixing system with blocks to ensure repositioning in case of maintenance.
  • service for camera mounting and testing.
  • prearrangement and mounting of power supplies, customer-specific interfaces (video encoder, Ethernet switches and fiber-optic modules).
  • type of power supply: traditional and HiPoE.
  • connection. The rear flange can be custom made to fit the most diverse types of connectors: PG, RJ45, power connectors and fiber-optic connectors.
RearFlange
